Laser Rangefinder Sensor 1mm Professional Bluetooth Laser Distance
Meter Module
The 1mm laser rangefinder sensor modules support oem and odm and
can mesure 20m. With the multi-function design, the high-precision
range finders can be chargeable and measure distanc, area, volume
etc. The laser range finder module supports single and continuous
measure mode. The ranging distance component is a high accuracy of
1 millimeter, and a long distance can measure up to 20m. High
Precision Laser Distance Meter Sensors Module is designed of the
world`s leading technology - single transmit and single receive.
Support OEM your own laser measure tools. The laser distance meter
sensor module is the sole part of laser distance meter tools.
20m laser distance sensor highlights:
1>. smallest size: 41*17*7mm can be used for your phone design
2>. long distance can measure from 0.03 to 20m
3>. fast response of 0.1-4s
How to use the laser distance meter bluetooth sensor?
1. install the Geshe software
2. inster the usb to the computer
3. open the laser baterry box
4. send the commonds to test the distance
The finished laser measure tools functions:
1. measure distance/height/depth
2. measure square
3. measure volume
Laser Distance Meter Sensor Feature:
1. Good for Industrial Application Measurement System
2. Support single measurement/continous measurement
3. 10m, 20m, 30m, 40m ioptional
Application Area
Widely used in professional construction, engineering mapping,
interior decoration, decoration industry, carpentry, industrial
measurement and control, door and window measurement, distance
measurement, furniture installation, planning industry etc.
Specifications of Laser Distance MeterSensor:
| Product Name | U81/U85 |
| Sensor Accuracy | ±1 mm (0.04 inch) |
| Measuring Unit | meter/inch/feet |
| Measuring Range (without Reflection) | 0.03-20m |
| Measuring Time | 0.125~4 seconds |
| Laser Class/Laser Type | Class II, 620-690nm, <1mW |
| Size | 47*17*7mm (±1 mm) |
| Weight | About 4g |
| Frequency | 3HZ~8Hz |
| Operating Temperature | 0-40 ℃ (32-104 ℉ ) |
1. Under bad measure condition, like environment with strong light
or the diffuse reflectance of measuring point over-high or low, the
accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please
use a reflector.
3. 30m can be customized.
4. Frequency would be affected by environment.
5. Operating temperature -10 ℃~50 ℃ can be customized.
How do laser distance sensors work?
JRT laser distance meter sensors adopt Single transmit and single
receive principle, that makes our distance sensor low power
consumption.
FAQ
Q1: What’s the delivery time after an order placed for this sample
Laser Distance Meter Sensor?
A1: Our standard delivery is 3 days if we have stock, otherwise we
will let you know in time. Usually we can manufacture 10,000pcs of
laser distance modules a day and 2,000pcs LDM.
Q2: What’s the MOQ?
A2: Regular products only 1pcs, OEM/ODM products need 1000pcs at
least.
Q3: What’s the warranty?
A3: All our products have one year guarantee and a life-time after
sales service.
Q4: Can I have a sample for testing?
A4: Yes. We do not offer free samples, but will reimburse the buyer
once an order is confirmed.
Packing list
4 x 4=16/ discs. 16/disk x 10=160/box
After-sale sercice
a. Lifetime warranty for software
b. 1 year warranty
c. Lifetime Technical support
Why Us?
1mm Resolution
High accuracy+-1mm without reflection. World's advanced single
transmitting single receiving technology of making laser module,
which greatly reduced cost and power consumption.
41*17*7mm
Smallest size in the world, Strong range finding ability and
industrial stability.
15 years R&D Experiences
We are manufacturer ,accepting OEM & ODM and helping customers to
explore different secondary solution, providing continuous
technical support and 12 hours response after-sales service for
users.
3,000,000 pieces per year
We sold more than 1 million pieces in 2017, about 2 million pieces
in 2018, it must be exceed this quantity next year. Thanks to the
introduction of new automatic machines, our production capacity is
2 million now.

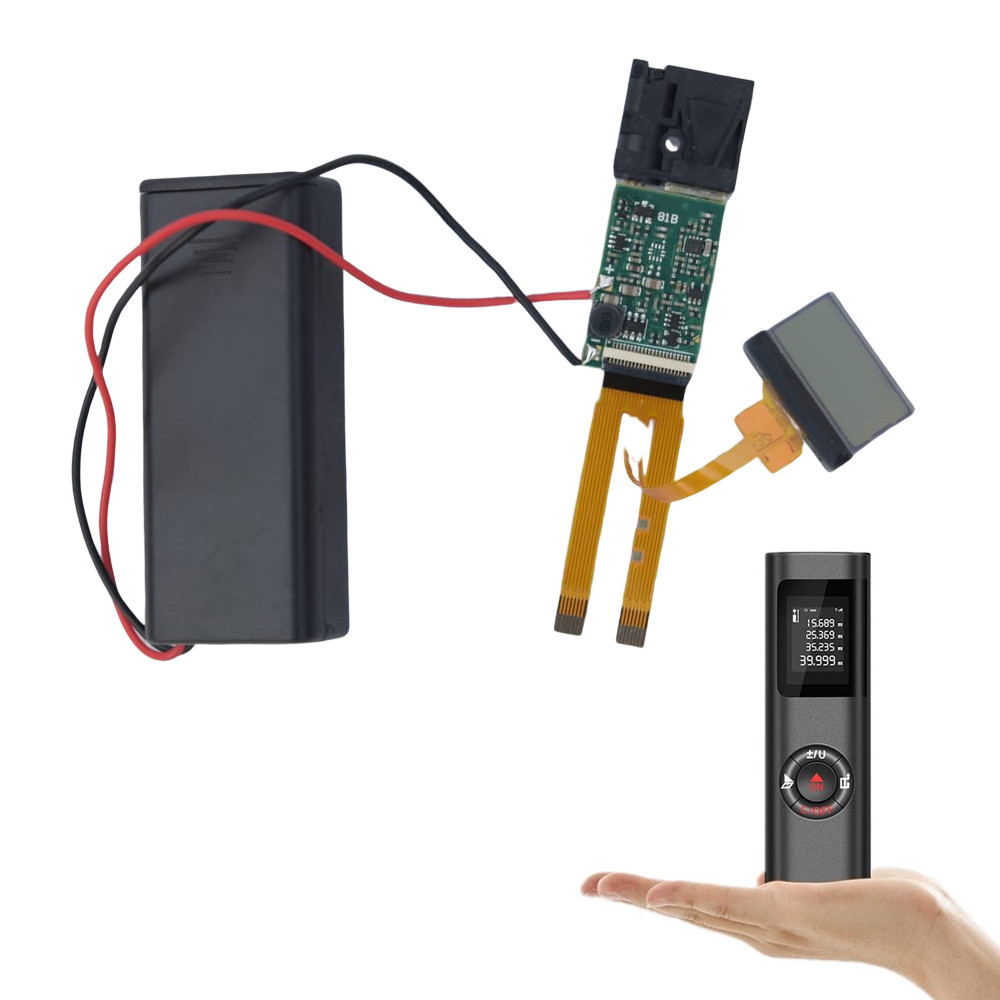

Laser distance meter sensor with LCD
Cooperation Terms
| Payment Terms: | T/T, Western Union, Paypal, Credit Cardetc. |
| Delivery Time: | 1~3 working days after received your payment |
| Supply Ability: | 10,000pcs per day |
Competitive Advantage:
1. We can do OEM designs and customize product functions as
customer required.
2. Support customize laser distance measure solution for you.
3. Wholesale price
4. Leading laser technology
About Module's Model:
| Product Name | Laser Distance Meter Sensor |
| Old Version Model No. | U81/U81A/U81B |
| Latest Version Model No. | U85 |
